AHV12V3KV10MAW

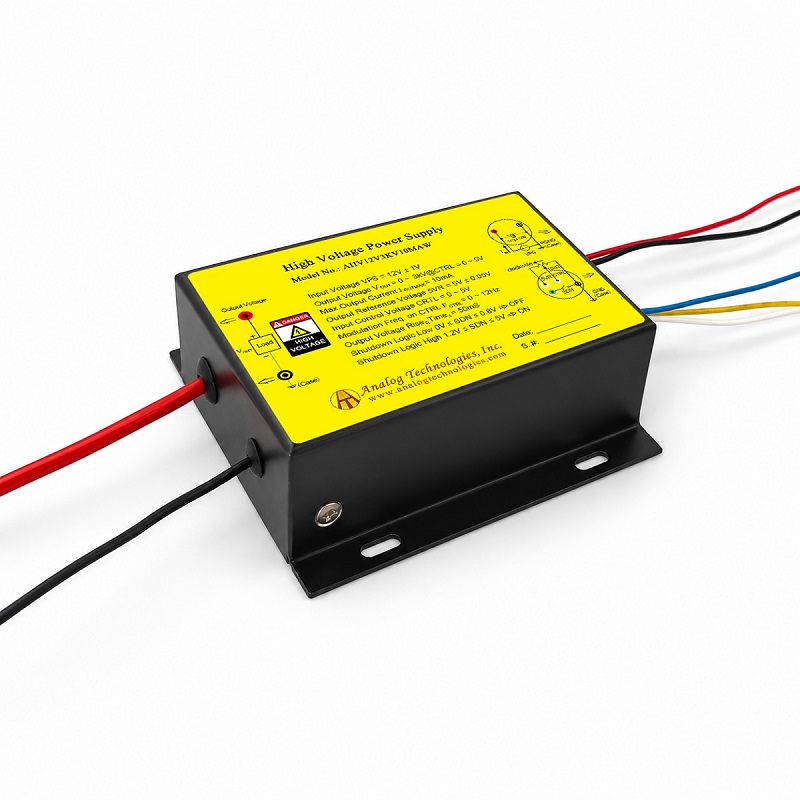

AHV12V3KV10MAW is a compact and reliable high-voltage isolated DC-DC power module designed to convert a 12V DC input into a stable 3000V output with up to 10mA output current. Built for high-voltage power conversion applications, this module features high isolation, high efficiency, low output ripple, and robust protection design, making it an excellent choice for scientific, industrial, and test equipment requiring dependable high-voltage DC power.

This 3000V isolated DC-DC converter is housed in a full aluminum enclosure for complete shielding and improved durability, while the compact package supports convenient system integration. With a wide -40°C to +85°C operating temperature range, the module is suitable for demanding environments where stable performance, compact size, and long service life are essential. For engineers searching for a high-voltage DC-DC power module, 3000V DC power supply module, or compact isolated high-voltage converter, the AHV12V3KV10MAW offers a practical and efficient solution.

Key Features:

• High-Voltage DC-DC Power Module: Designed for efficient conversion from 12V DC input to 3000V DC output in compact systems.
• Stable 3000V Output: Delivers a regulated 3000V DC output with up to 10mA maximum output current.
• High Efficiency: Optimized design ensures efficient power conversion with low power loss.
• Low Ripple Performance: Output ripple is minimized for precision high-voltage applications.
• High Isolation: Input-to-output isolation enhances safety and system reliability.
• Built-In Protection: Includes protection features for stable and robust operation.
• Compact Shielded Design: Full aluminum housing provides complete EMI shielding and mechanical protection.
• Wide Operating Temperature Range: Operates from -40°C to +85°C for industrial and laboratory environments.
• Easy Integration: Compact form factor enables convenient installation into various systems.

Typical Applications: Photomultiplier tubes (PMT), avalanche photodiodes (APD), mass spectrometry, ionization detectors, electrostatic systems, electron beam systems, and other applications requiring a stable compact 3000V high-voltage DC power module.

DATASHEET
